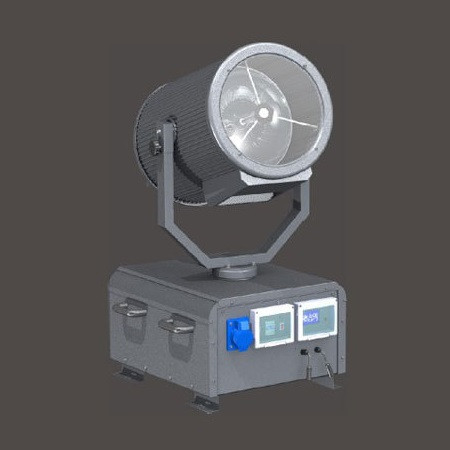

Model: GDP/DMX - XBO3000/4000/5000/7000 w
Power supply: AC220V plus or minus 5% / 50 hz (1 p + N + E)
AC220V plus or minus 5% / 50 hz (1 p + N + E)
Light source: xbo-3000/400/500/7000w (spherical dc xenon lamp)
Beam Angle: 0~100 adjustable
Rotation Angle: X axis plus or minus 3500 internal Angle and rotation direction arbitrarily set, Y axis 600 manual adjustment
Reflector: reflector: Φ 0 ~ 400/356/325/300 mm glass
Driving mode: stepper motor is driven by worm gear
Control mode: DMX controller control; Master slave control (built-in demo program)
Number of channels: 3/5ch (see attached table for details)
Protection grade: IP44
Use: it can be used in square, park, high-rise building, city high point, river coastal scene. This type of
The lamps and lanterns are mainly used in the projects which require high requirements of lighting effect and special programming effect
