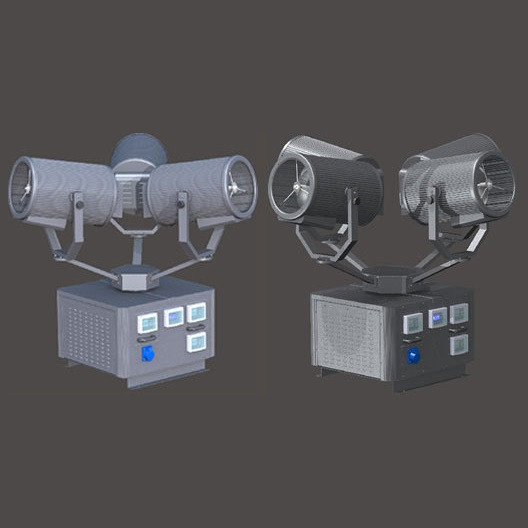

Model no. : GDP/ + / 600-xbo (3~6) x300/400/500/7000w
Power supply: AC380V + 10%/50Hz (3P+N+E)
Light source: xbo-3000/400/500/7000w (spherical dc xenon lamp)
Beam number: 3/4/5/6
Rotation Angle: X axis plus or minus 3600 automatic positive return rotation, Y axis manual adjustment of 600
Light beam colors: white, rose red, yellow, green, blue
Color filter: rose red, yellow, green, blue for the optional accessories
Reflector: adjustable Φ 0 ~ 100
Light source focus: X, Y, Z fine tuning
Driving mode: stepper motor is driven by worm gear
Control mode: DMX controller control; Master slave control (built-in demo program)
Number of channels: 5Ch (see attached table for details)
Protection grade: IP44
Structure of lamps and lanterns: lamp holder USES combination mode, convenient installation transports
Function: beam X axis plus or minus 3600 circular rotation, Y axis manually adjust fixed elevation Angle, beam color can be any combination
Use: it can be used in square, park, high-rise building, city high point, river coastal scene. This type of
The lamps and lanterns are mainly used in the projects which require high requirements of lighting effect and special programming effect
