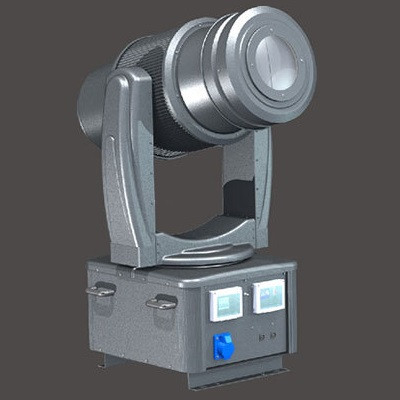

Model: GBSTK/DMX - XBO3000/4000/5000/7000 w - A/B
Power supply: AC220V plus or minus 5% / 50 hz (1 p + N + E) (3-5 kw)
AC380V plus or minus 5% / 50 hz (3 p + N + E) (7 kw)
Light source: spherical dc xenon lamp 3000w/4000w/5000w/7000W
Protection grade: IP44
Beam number: less than or equal to 46
Beam Angle: 0~200 DMX512 channel controlled zoom, the beam can be opened and closed
Beam rotation Angle: + / - 600 DMX512 channel controls positive and negative steering
Electronic dimming: 10~100%
Electronic strobe: 1~15f/s
Light gate: DMX512 channel controls mechanical light gate
Control mode: DMX512 console control; Master/slave synchronization control (built-in bootstrap demo)
Number of channels: type A 7CH; Type B 12CH (see attached table for details)
Rotation Angle of lamp body: X-axis 3500, Y-axis 2400 (precision error correction is used for x-y axis)
Transmission: precision worm and worm compact transmission
Light source focus: Y, X, X fine tuning
Color changing system: type A: no color changing function
Type B: adopt the unique built-in CMY three-color polygon glass cylinder with infinite color
(patent no. : ZL2005530010300X)
Display mode: LCD blue backlight LCD screen, one button flyby mode selection menu
Protection mode: all metal centrifugal fan is adopted, and the wind speed hall sensor is automatically monitored and protected
USES: can be used in square, park, high-rise building, urban high point 'river coastal large landscape, city night lighting
An indispensable main light fixture for the show. This kind of lamps and lanterns basically is used for a few high key to lamplight effect
The project can realize the use of lighting and music, culture and story scene performance
